Filter Disc
2012-04-23 09:09:32 Source:Hebei BangDa Metal Products Co.,Ltd Browse:2241
 |
|
|
1: the air filter cartridge adopts imported fiber as filter material ,comppunded with advanced folded technology,which makes the air filter with large filter area, small hole diameter, high efficiency,etc.
2: The material for cover and frame is galvanized plate, with perfect anti-corrosion and anti-rusty performance. | |

|

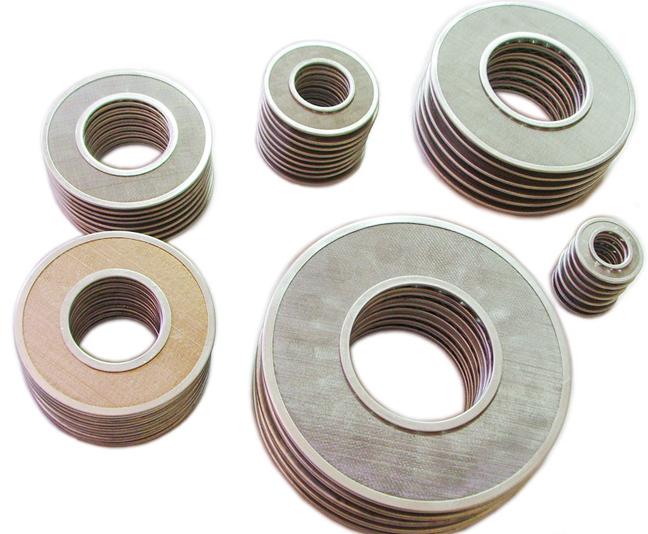

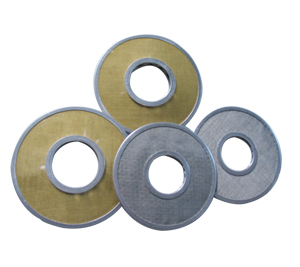

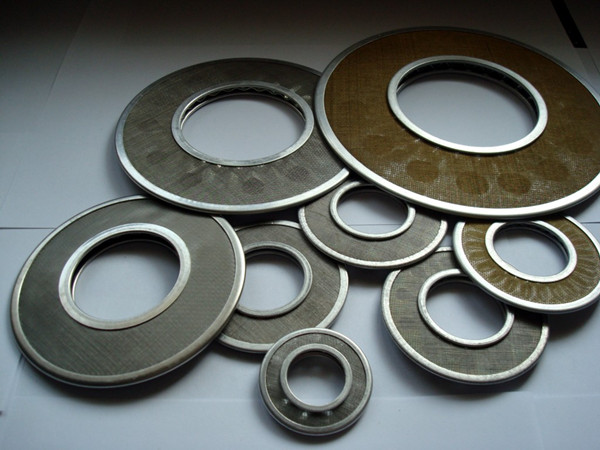

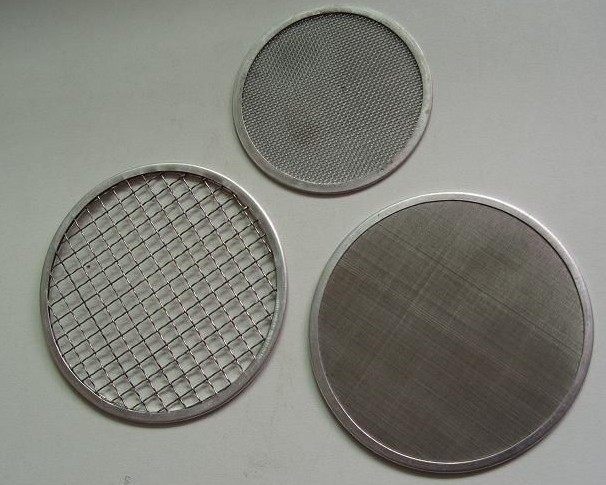

Filter Discs and Wire Mesh Discs are made of stainless steel woven wire mesh and wire cloth.
Materials: AISI316L, stainless steel woven wire cloth, stainless steel sintered web, phosphate bronze wire cloth and brass wire cloth, copper and other alloy materials, etc.
Marginal materials: Stainless steel, aluminum and nickel-plated copper.
Shapes: Round, rectangle, elliptical and other shapes.
Disc filters are provided in different shapes: Single piece or multiple layered.
Features: Wear-resisting, heat-resisting, acid-resisting and corrosion resisting. Easy-washing, long service life.
Uses: Pack filters and wire mesh discs are mainly used in pharmacy, chemicals, chemical fibers, petroleum, etc.
metal wire mesh discs of varied materials and sizes.Typical one is stainless steel wire woven mesh punched into circular filter.The weaving method is plain, twill, or plain Dutch and twill Dutch.Also supply welded multi-layer pack filter used in rubber industry, plastic industry, and oil industry and cereal sifter.
The main materials for pack filter include S.S. woven wire cloth, S.S. sintered web, phosphate bronze cloth and brass wire cloth etc. It is divided into round, rectangle, hoop and ellipse etc, according to the outline. The frame can be S.S., aluminum and nickel copper and the filter can be single layer and multi-layer, Above all depends on the requirement of our customers.
Mainly for the filtration of air, the medium cleaning and flow control of lubrication oil, fuel oil. Hydraulic pressure and air pressure system. Any outline size and filtration rating available as the requirements of the custom
|
Filtration Rating: |
2-200 µm |
|
Oil Flowing: |
8-200 L/Min |
|
Working Pressure: |
0.8 MPa |
|
Adaptation Temperature: |
70-95 ¡ãC |
|
| |
|
|
